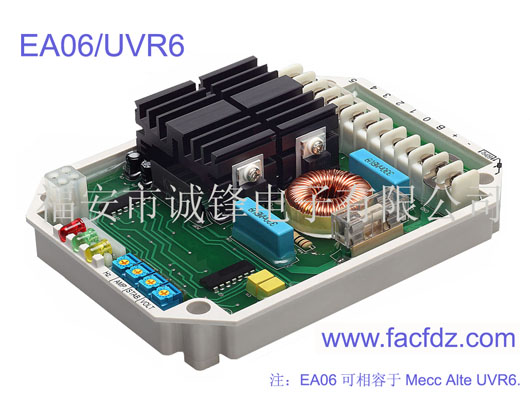

TECHNICAL DATA:
Sensing Input                                                                 Terminal 1,2   3,4   5,6
Can be connected to Y or △
220~480 VAC single phase 50/60 Hz
Power Input                                                                    50~280 VAC (1,2) 50/60 Hz
Output                                                                              Voltage 63 VDC @ 220 VAC Input
Current Continuous 6A Max. Intermittent 7A for 10 sec.
Voltage Regulation                                                        < ±1% (with 4% engine governing)
Voltage Build-up                                                            Residual Voltage above 5 VAC 25 Hz
External Volts Adjustment                                          100 K Ohm 1/2 watt ±5%
Unit Power Dissipation                                                Max. 5 watt
EMI Suppression                                                           Internal Electromagnetic Interference Filtering
Under Frequency Protection                                      Adjustable range 42~62 Hz
Excitation Winding Resistance                                  DC Resistance 10~100 Ohm
Over Excitation Protection                                          25~55 VDC @ 0.1~20 sec.
Environment                                                                   Operating Temperature : -40~65 °C
Storage Temperature : -40~80 °C
Relative Humidity : Maximum 95%
Vibration : 1.5G @ 5~30 Hz , 5.0G @ 30~500 Hz
AVR Controls Function                                                 VOLTS : Voltage Adjustment
STAB : Stability Adjustment
U/F : Under Frequency Protection
AMP : Over Excitation Setting
Dimensions                                                                     150.0 (L) x 114.7 (W) x 35.2 (H) mm
Weight                                                                              520 g ±2%
