Description:

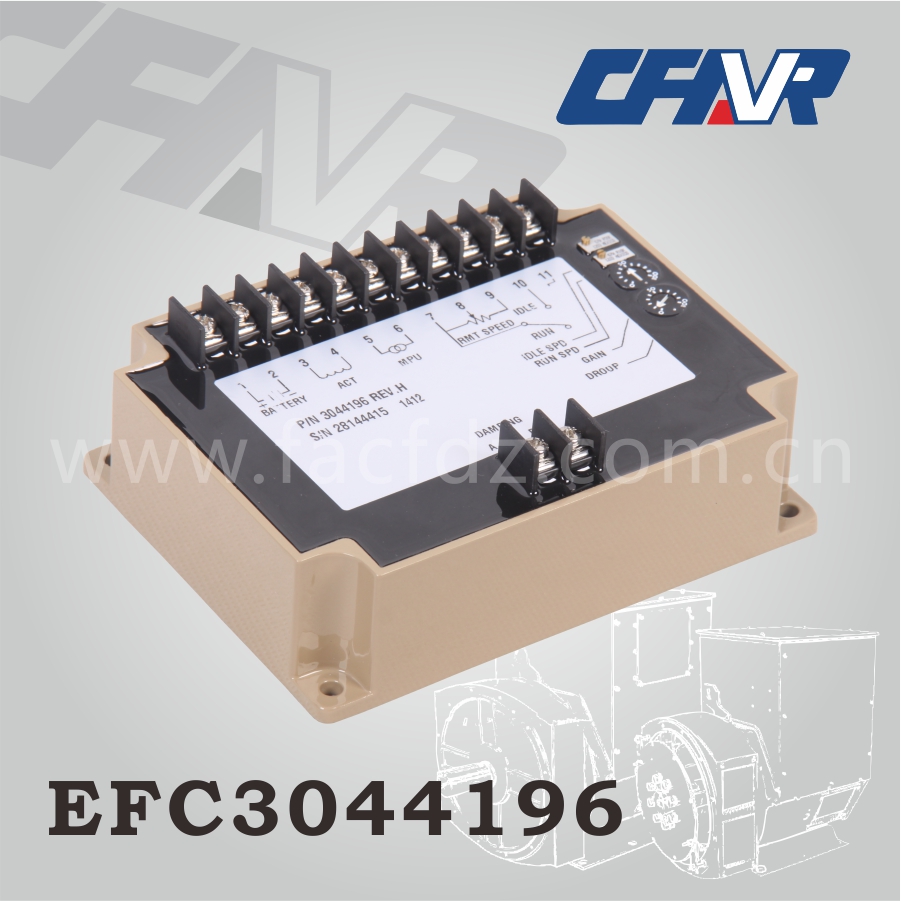

3044196 speed controller is composed by full electronic closed loop control system. It can control the rotationl speed of engine accurately when load instantaneously change. While connects with EFC series electronic actuator and magnetic speed sensor, it will completely control CUMMINS engine.
Refer to design, it is simple to install with the ability of preset adjustment for adjustment rate, working idling, output to applicable to several machines or multifunctional machines, which also has the safety protection for short-circuit failure and lack of revolution speed transducer signal or power.
(3062322 is high power type, which can operate 500KW above motor.
Technical specifications
Sability of rotational speed: ＞±0.25%
Velocity range: 1KHz ~ 6.5KHz
Thermal stability: Max ±0.7%
IDLE Adjustment: 260 ±20Hz ~ 85% of rated speed
DROOP Adjustment: Min 15Hz ±6Hz / Ampere load current change
Max 400Hz ±75Hz / Ampere load current change
Outside speed adjustment: ±200Hz（external 1KΩ）
AUX Input sensitivity: 148Hz / 1V., ±10Hz.
Impedance:
Working environment:
Working temperature range:
Working humidity range: Max 95%
Storage temperature:
Vibration: 20-100HZ
Input power:
Power voltage: 12V/24V DC battery system
Grounding polarity: negative electrode
Power dissipation: 40mA
Actuator continuous current: Min
Speed controller signal: 2 ~ 120V RMS
Note: the parameter above is measured at 3800Hz working frequency
